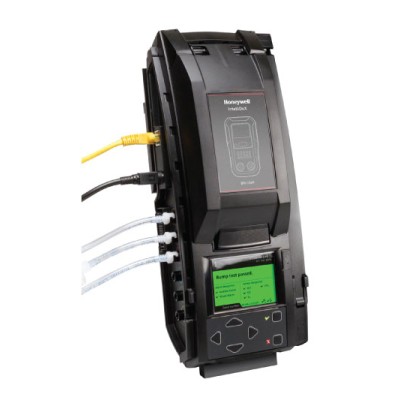

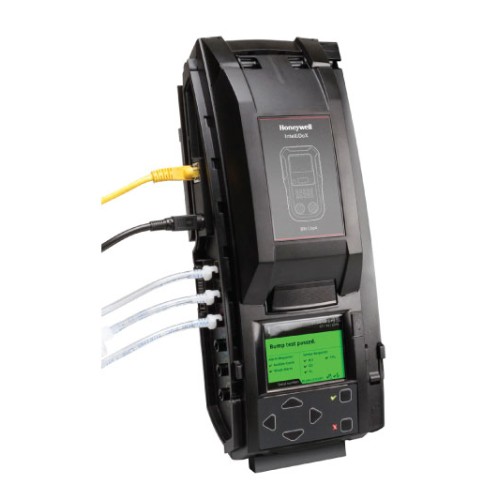

The IntelliDoX system combines smart docking modules and device management software to provide automated instrument management for Honeywell BW™ Solo, Honeywell BW™ Ultra, BW™ MaxXTII, BW™ Clip Series, Honeywell BW™ Clip4 and Honeywell BW™ MicroClip Series gas detectors - Module Only - Enabler Kit Sold separately.
Stock Status - Stock / Special Order on the supplier.
With the IntelliDoX instrument management system, simply place a detector in the docking module, and it automatically performs certain activities based on your specifications in the Fleet Manager II or Honeywell Safety Suite software. You can set each module to do a bump test, reconfigure the detector’s high and low alarm set points, and more. Also use the software to analyse the data from each gas detector, run reports, track compliance, and even send email reminders to workers.
Each IntelliDoX calibration / docking system can support up to 5 IntelliDoX modules.
All 5 modules can be of the same detector type ie: all suited for the microclip range or consist of a combination of detector modules ie: 1 x microclip, 2 x Max XT, 2 x Clip 4 etc...
One IntelliDoX enabler kit is required for each docking system whether it is one or five modules.
IntelliDoX enabler kit includes:
Standard Package Contents include:
Note: the enabler kit must be ordered separately
| Size |
13.8mm x 36.2mm x 10.9cm (individual docking module)
|
| Weight | 1.91 kg |
| Power Supply | 12V / 8.33A ITE Power Supply |
| Real Time Clock | Provides time and date stamp |
| Communications Method | Two-way infrared communicaiton between docking module and detector |
| Exteternal Interface |
1 USB Port
1 Ethernet Port
|
| Menu Navigation |
Adjust display settings
Adjust time and date
Configure gas inlets
Review IntelliDoX module
Password Protected (when enabled)
Configure UI display language: English, French, German, Portuguese, Spanish
|
| Automatic Tests |
Automatic bump tests to verify sensor reposnds to the target gas
Automatic bump test in 10 seconds for BW Clip / BW Clip real time with FastBump
|
| Data Storage | 2 GB internal |
| Pump | Independent pump in each IntelliDoX module. Flow Rate: 350 ml/min |
| Instrument Management System | Fleet Manager II, version 4.4 or higher |
| Ratings |
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
FCC Part 15
ICES-003 Canadian EMI
IP20
|
| Warranty | Full two year warranty |
Configuring the Honeywell IntelliDoX via USB drive
MicroDock II Calibration Dock Special Order
When you see 'Special Order' products available for purchase on our website it means they will be sourced on-demand from our suppliers when you place your order. Products typically have this status when the product is not actively stocked within our warehouse but are available to order.
This may be due to the shelf life or the specialty nature of some of our products (ie: gas detection and specialty gases) or the need to custom manufacture a product to fit/suit the application.
Once we have received your order and payment confirmation we will place an order with the Supplier.
Gas Detectors / Specialty gases (ie: short shelf-life products) - may take up to 4 weeks (please note this can vary per supplier availability and manufacturing schedules) to be receipted into our store. You will receive an estimated date of shipping once we have received confirmation from our Supplier.
Custom Manufacturing - for items that require custom manufacturing you will receive an estimated date of shipping once we have received confirmation from our Supplier.
From time to time a supplier may not be able to supply in the time indicated, and items are placed on backorder. If it appears that your order will not be dispatched on time, you will be informed as soon as possible. You will be offered the opportunity to cancel your order at that time, otherwise, your order will be dispatched as soon as the items are available.
