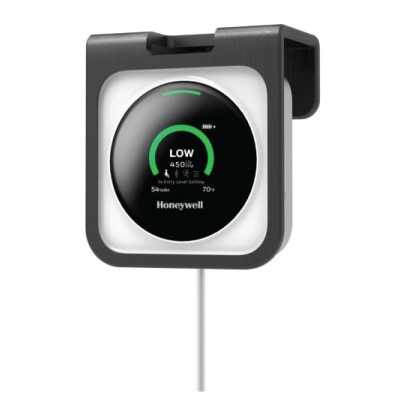

Honeywell Transmission Risk Air Monitor (HTRM)

The NEW Honeywell Transmission Risk Air Monitor is an easy-to-deploy, portable CO2 (carbon dioxide) that features a proprietary risk alerting system based on different activity levels within a room.

Stock Status - Special Order on the supplier.

Cost-effective CO₂ Air Monitor

For use in schools and restaurants that will alert users when conditions are present that may increase the risk of potential exposure to airborne viral transmission in an indoor area.*

Features of the Honeywell Transmission Risk Air Monitor (HTRAM)

• Monitor carbon dioxide, Temperature and Relative Humidity
• Uses a non-dispersive infra-red (NDIR) sensor for more accurate monitoring
• Three pre-programmed activity level settings (Low/Medium/High)
• Traffic Light Visual Indication (Green/Yellow/Red)
• Sound Alert: one beep for medium alert; two beeps for high alert
• Small portable size and lightweight
• Easy-to-use one-button setting
• 10 hours battery life using Lithium-ion rechargeable battery
• 1-year limited product warranty

HTRM Specifications

Size/Dimensions	80mm x 80mm x 22mm
Weight	140g
Housing Materials	Aluminum Alloy
Display	TFT
Input Voltage	5V
Input Current	1A
Battery	Lithium-ion rechargeable battery with 10 hour battery time
Battery Capacity	2,600 mAh
Operating Temperature & Humidity	0°c to 40°c, 0% RH to 90% RH
USB Port	Micro USB
Warranty	1 year



HTRM Sensor Specifications

HTRAM Sensor Range

CO2 (NDIR)	400ppm to 2000ppm, up to 10,000 ppm extended range
Temperature	-20°c to 60°c
Humidity	0% RH to 100% RH





Device Indicators

Download Datasheet

For more information on the Honeywell CO2 Transmission Risk Air Monitor



Download Datasheet PDF

Disclaimer & References

*The Honeywell Transmission Risk Air Monitor (HTRAM) analyzes specific air quality conditions and alerts the user when conditions are present that may increase the risk of exposure to airborne viral transmission. It does not prevent or reduce virus transmission nor mitigate viruses that may be present, nor does it detect or warn against the presence of any virus, including but not limited to COVID-19. The HTRAM does not repel or destroy any microorganism, viruses, bacteria, or germs. for more information refer to the datasheet for more information



References:

1. Ventilation in Buildings | CDC
2. COVID-19 Airborne Transmission Tool Available | CIRES (colorado.edu)
3. Exhaled CO₂ as COVID-19 infection risk proxy for different indoor environments and activities, Sept. 2020, https://www.medrxiv.org/content/10.1101/2020.09.09.20191676v1

For more information on the Honeywell CO2 Transmission Risk Air Monitor

Download Datasheet PDF

*The Honeywell Transmission Risk Air Monitor (HTRAM) analyzes specific air quality conditions and alerts the user when conditions are present that may increase the risk of exposure to an airborne viral transmission. It does not prevent or reduce virus transmission nor mitigate viruses that may be present, nor does it detect or warn against the presence of any virus, including but not limited to COVID-19. The HTRAM does not repel or destroy any microorganisms, viruses, bacteria, or germs. for more information refer to the datasheet for more information

References:

1. Ventilation in Buildings | CDC
2. COVID-19 Airborne Transmission Tool Available | CIRES (colorado.edu)
3. Exhaled CO₂ as COVID-19 infection risk proxy for different indoor environments and activities, Sept. 2020, https://www.medrxiv.org/content/10.1101/2020.09.09.20191676v1
