AutoRAE 2 Test & Calibration System for RAE Portable Gas Detectors
Price:
$5,225.00
Ex Tax:
$4,750.00

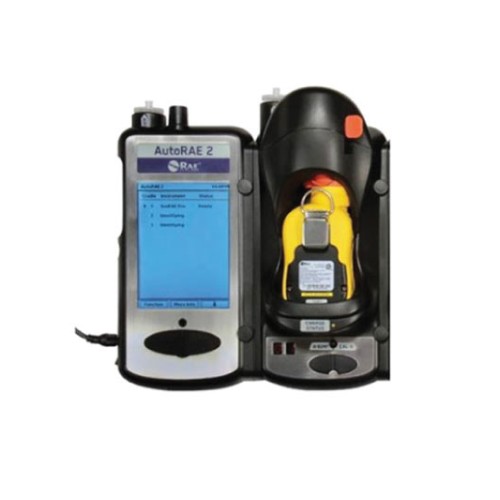

The AutoRAE 2 Automatic Test & Calibration System for Honeywell RAE Systems portable gas monitors. Simply cradle the monitor, and the system takes care of calibration, testing, and battery recharging.
To calculate pricing select cradle & controller options.
Stock Status - Special Order on the supplier.
Automatic Test and Calibration System

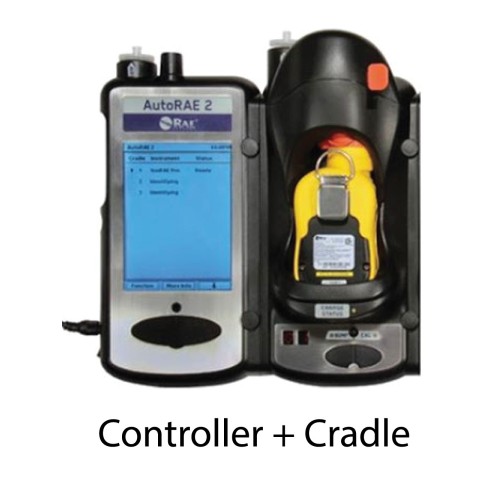

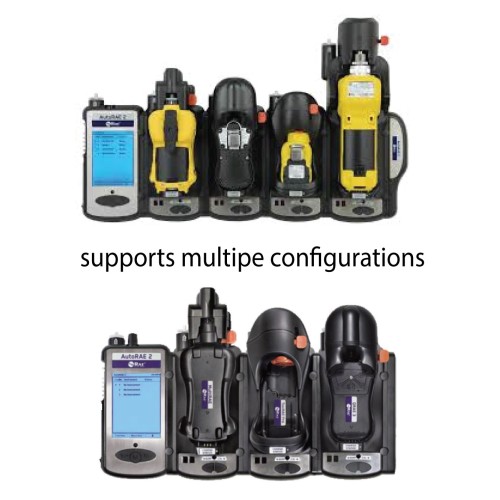

The AutoRAE 2 docking station is flexible and modular and can be configured to efficiently meet your calibration and records management requirements. An AutoRAE 2 system can be as simple as a single cradle deployed in standalone mode to calibrate one instrument at a time, or as powerful as a networked, controller-based system supporting 10 instrument cradles and 5 distinct calibration gases or gas mixtures.
- Easy, one-touch bump testing, calibration, charging, and records management
- Supports a wide variety of gases, including exotics
- Optimised for field use—does not require a computer to operate
- Firmware-upgradeable to protect your investment
- RAE gas detector cradle options: MultiRAE, ToxiRAE Pro
AutoRAE 2 Controller Specifications
| Size | 143 x 265 x 44 mm |
| Weight | 0.86 kg |
| Power Supply | AC adapter (110V to 240V input, 12V output, 7.5A), Charges up to 10 instruments at a time |
| Quantity of Cradles supported by a Controller | Up to 10 cradles total (any mix, any order) |
| Display | 5.7" TFT (320 x 240) graphical backlit color LCD |
| Buttons | 3 buttons ([Mode], [Y/+], and [N/-]) |
| Real-time Clock | Yes |
| Visual Alarm/Indicators | Color graphical LCD display |
| Audible Alarm | 90dB @ 12" (30 cm) |
| Gas Inlet/Outlet Ports | 6 inlets (1 dedicated fresh air inlet and 5 configurable calibration gas inlets); 1 exhaust port |
| Gas Port Connectors | Connectors with 200-series barbs, 1/8" (3.18 mm) ID tubing |
| Gas Regulator | Demand-flow regulator (0 to 1,000 psig/70 bar) |
| Pump Flow Rate | Built-in pump (500 ml/min) |
| Data Storage | Standard 2 GB SD card with security lock |
| PC Communications | USB (Type B) port for direct connection to PC |
| Networking | Direct cable (RJ-45 10/100 Base T port), Wi-Fi module (accessory) |
| System Configuration | PC-based configuration via ProRAE, Studio II software. Can be performed using networking capability |
| Wall-mounting Accessory | Standard TS35 DIN rail |
| Operating Temperature | 0˚C to 50˚C |
| Operating Humidity | 5% to 95% relative humidity (non-condensing) |
| Languages | English |
| Compliance | CE |
| Warranty | 2-year limited warranty |
AutoRAE 2 Terminal Adapter Specifications
| Size | 55 x 225 x 42 mm |
| Weight | 0.15 kg |
AutoRAE 2 Cradle Specifications
| Size MultiRAE Cradle | 165 x 322 x 111 mm |
| Size QRAE 3 Cradle | 165 x 320 x 118 mm |
| Size ToxiRAE Pro Cradle | 165 x 295 x 99 mm |
| Weight MultiRAE Cradle | 0.86 kg |
| Weight QRAE 3 Cradle | 0.98kg |
| Weight ToxiRAE Pro Cradle | 0.89 kg |
| Power Supply | AC adapter (110V to 240V input, 12V, 1.25A output), Charges one instrument at a time |
| Display | 2 seven-segment LEDs |
| Buttons | 2 buttons ([Bump] and [Cal]) |
| Real-time Clock | Yes |
| Visual Alarm/Indicators | Tri-color (red/green/yellow) LED lights |
| Audible Alarm | 90dB @ 12" (30 cm) |
| Gas Inlet/Outlet Ports | 3 inlets (1 dedicated fresh air inlet and 2 configurable calibration gas inlets); 1 exhaust port |
| Gas Port Connectors | Connectors with 200-series barbs, 1/8" (3.18 mm) ID tubing |
| Gas Regulator | Demand-flow regulator (0 to 1,000 psig/70 bar) |
| Pump Flow Rate | NA for pumped instruments, (400 ml/min typical) for diffusion instruments |
| Data Storage | None. Data stored only on PC |
| PC Communications | USB (Type B) port for direct connection to PC |
| Printer Support Cradles | Direct printing on serial (RS-232) printers |
| Networking | Not supported |
| System Configuration | PC-based configuration via ProRAE, Studio II software. |
| Wall-mounting Accessory | Standard TS35 DIN rail |
| Operating Temperature | 0˚C to 50˚C |
| Operating Humidity | 5% to 95% relative humidity (non-condensing) |
| Languages | English |
| Compliance | CE |
| Warranty | 2-year limited warranty |
Suited Industries for the Honeywell RAE Systems AutoRAE 2 Automatic Calibration & Test station
- Industries
- Oil and Gas
- Industrial
- Environmental
- Fire Service
- National Security
