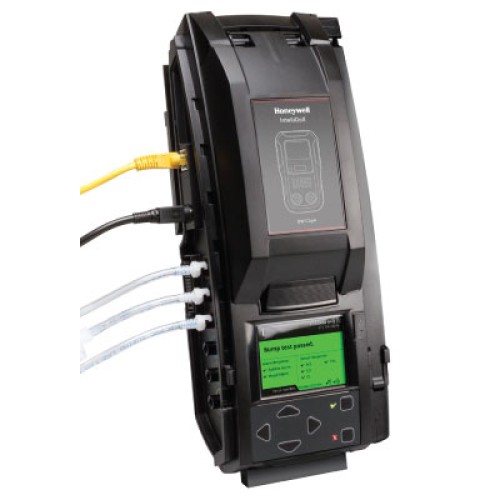

IntelliDoX Calibration System - Module Only

The IntelliDoX system combines smart docking modules and device management software to provide automated instrument management for Honeywell BW™ Solo, Honeywell BW™ Ultra, BW™ MaxXTII, BW™ Clip Series, Honeywell BW™ Clip4 and Honeywell BW™ MicroClip Series gas detectors - Module Only - Enabler Kit Sold separately.

Stock Status - Stock / Special Order on the supplier.

With the IntelliDoX instrument management system, simply place a detector in the docking module, and it automatically performs certain activities based on your specifications in the Fleet Manager II or Honeywell Safety Suite software. You can set each module to do a bump test, reconfigure the detector’s high and low alarm set points, and more. Also use the software to analyse the data from each gas detector, run reports, track compliance and even send email reminders to workers.

• Honeywell BW™ MicroClip Series – Multi-Gas Detector
• Honeywell BW™ Clip4 – Multi-Gas Detector
• Honeywell BW™ Ultra - Multi-Gas Detector
• Honeywell BW™ MaxXTII – Mulit-Gas Detector
• BW™ Clip Series – Single Gas Detector
• BW™ Solo – Single Gas Detector
• BW™ Icon – Multi Gas Detector
• BW™ Flex – Multi-Gas Detector

This email address is being protected from spambots. You need JavaScript enabled to view it.    if you would like help and/or pricing on multiple modules and configuration

Features & Benefits of the IntelliDoX

• Enables bump test tracking, and easy recordkeeping for improved compliance
• Performs the quickest bump test in the industry for increased uptime and no wasted calibration gas
• Enables the ability to change alarm set points, set a noncompliance indicator when a bump test is due,
• Flexible configuration
• Efficient networking and data transfer for easy record keeping
• Quick and easy setup

What you need to configure and power your IntelliDoX Calibration System

Each IntelliDoX calibration/docking system can support up to 5 IntelliDoX modules.

All 5 modules can be of the same detector type ie: all suited for the microclip range or consist of a combination of detector modules ie: 1 x microclip, 2 x Max XT, 2 x Clip 4 etc...

One IntelliDoX enabler kit is required for each docking system whether it is one or five modules.

IntelliDoX enabler kit includes:

• Australian power supply
• Ethernet cable
• Inlet (purge) filter assembly
• 1 m calibration gas tubing
• 1 m purge gas tubing
• 4.5 m exhaust tubing and quick-connect fittings

Standard Package Contents include:

• One IntelliDoX module with a factory-installed nest for a compatible portable gas detector Single-Inlet Key and an attached End Plate
• Integrated retractable stand/wall mount
• Quick Reference Guide
• Operator's Manual CD
• Fleet Manager II software CD

Note: the enabler kit must be ordered separately

Honeywell IntelliDoX features at a glance

Configuring the Honeywell IntelliDoX via USB drive

Connecting the Honeywell IntelliDoX via a Network
