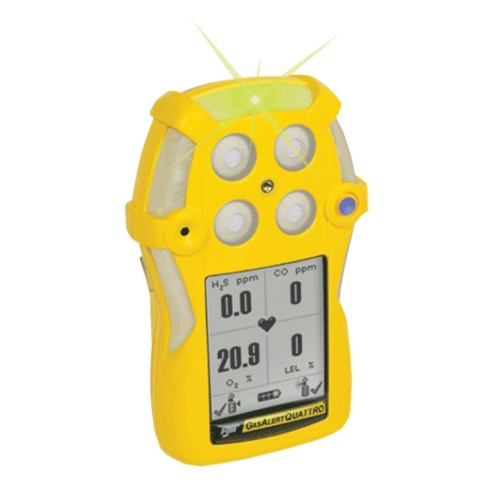

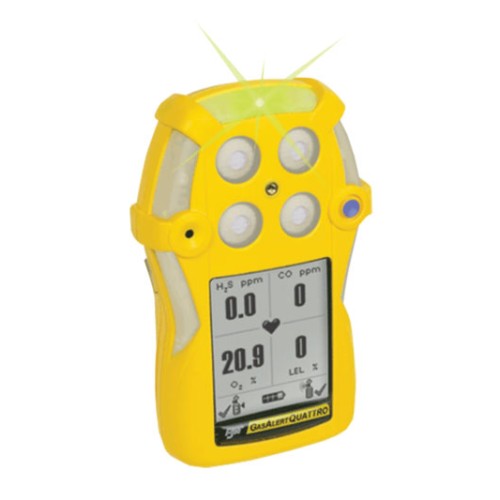

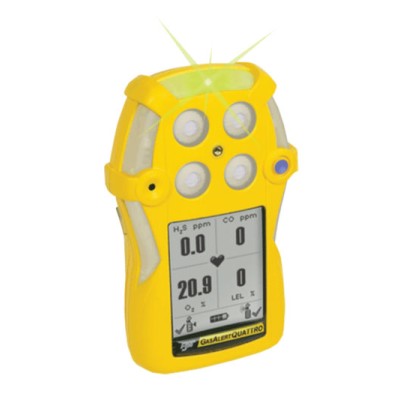

Honeywell BW GasAlert Quattro Portable Gas Detector

Product Code: GDQT-XWHM
Sensor Gas Type: O2, LEL, CO, H2S
Gas Quantity: 4 Gases
O2 Sensor Life: 3-year
Typical Battery Life: AA alkaline: 14 hrs (+68 to 122F / +20 to 50C) Rechargeable: 20 hrs (+68 to 122F / +20 to 50C) 18 hrs (-4 to +32F / -20 to 0C)
Warranty: Full 2-year warranty including sensors

Price: $1,969.00
Ex Tax: $1,790.00

Available Options

Battery Option:

Battery Option

Rechargeable

Add to Wish List

Add to Compare

The GasAlertQuattro from Honeywell BW™ is a rugged and reliable four-gas detector that combines a comprehensive range of features with simple one-button operation.

Multi-gas detector for H2S / CO / O2 / LEL with a choice of lithium-ion battery pack delivering long runtime and reliability. The graphic LCD displays easy-to-identify icons that indicate operational information, such as bump test and calibration status for simplified onsite auditing. The IntelliFlash provides continuous visual confirmation of detector operation and compliance.

The Quattro is suited to a wide range of industrial applications including confined space entry.

Featuring:

  • Compact & lightweight
  • Easy to use with one-button operation
  • MicroDock II compatible
  • The interchangeable battery pack
  • Comprehensive data logging and event logging capacity
  • CO & H2S sensors have enhanced resistance to common industrial cross-sensitive gases such as methanol & ethanol

PORTABLE / EASY TO USE / RELIABLE

CO | H2S | O2 | LEL

Benefits at a Glance

  • Continuous visual compliance with IntelliFlashTM for both the user and supervisors from up to 6.1m
  • Continuous LCD shows real-time gas concentrations
  • Simple automatic calibration procedure; compatible with BW's MicroDock II automatic test and calibration station
  • Water Resistant
  • Full function self-test of sensor[s], battery status, circuit integrity, and audible/visual alarms on start-up and continuous testing on sensor[s]
  • Bright wide-angled visual alarm bars
  • Built-in concussion-proof boot
  • Powered by an interchangeable rechargeable battery pack
  • One-button operation and straightforward user interface minimises training
  • Comprehensive data logging and event logging capacity
  • Enhanced resistance to common industrial cross-sensitive gases such as methanol and ethanol [CO & H2S sensors]
  • Multi-language support in English, French, German, Spanish, and Portuguese
  • Field-proven  SureCell sensors offer unprecedented performance in even the harshest of environments
  • Full 2-year warranty including sensors

Specifications for the GasAlert Quattro

Size 13 x 8.1 x 4.7cm
Weight 316g with rechargeable battery pack
Temperature
-20 to +50°c
Humidity
10% to 100% RH [non-condensing]
Alarms
- visual, vibrating, audible [95dB]
- Low, High, STEL, TWA, OL [over limit]
Test Sensor integrity, circuitry, battery and audible/visual alarms on activation, battery (continuous), sensor (continuous)
Pump Compatible with sampler motorised sampling pump
Typical Battery Life*
Rechargeable: 20 hours (+20 to +50°c)
Rechargeable: 18 hours (-20 to +50°c)
User Options
Confidence/Compliance Beep
Confidence Flash
Set STEL internal
Sensor  on/off
Latching Alarms
Safe display mode
Stealth Mode
Force Calibration
Calibration lock
Autozero on startup
IntelliFlash interval
Low alarm acknowledge
Datalog interval
User-settable calibration gas level
Combustible gas measurement [%LEL or % by volume methane]
Custom startup message
Ratings EMI/RFI: complies with EMC directive 2004/108/EC IP66
Certificates & Approvals
UL: Class I, Division 1, Groups A,B,C,D
ATEX: CE Ex ia llC T4
UIECEx: Ga Ex ia IIC T4
BR-EXIA IIC T4
EMI/RFI: Complies with EMC Directive 2004/108/EC IP66/IP6
*Approximately 20% capacity loss is normal with lithium polymer batteries after 500 charge cycles. Refer to the Operator's Manual for additional information
**Battery is guaranteed to have a 12-hour runtime during the warranty period under normal operating temperatures -20 to 50°C
