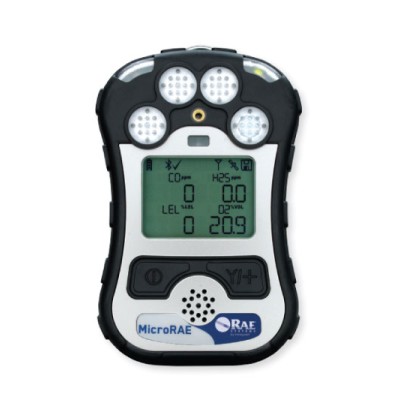

The MicroRAE™ is a Bluetooth and optional wireless multi-gas diffusion monitor that simultaneously measures up to four gases.
CO | H2S | O2 | LEL
Stock Status - Special Order on the supplier.
PORTABLE / EASY TO USE / RELIABLE
CO | H2S | O2 | LEL
The MicroRAE™ is a Bluetooth, wireless multi-gas diffusion monitor that simultaneously measures up to four gases, including hydrogen sulphide, carbon monoxide, oxygen, and combustibles (LEL). With its multiple wireless connectivity options, the MicroRAE can deliver real-time instrument readings location and alarm status to other wireless solutions such as ConneXt Plus, ConneXt Pro, ConneXt Lone worker, and Safety Communicator.
Connectivity
Numerous connectivity solutions. Compact and lightweight.
Robust
Strong, protective, concussion-proof design. Real-time gas concentration readings, location, alarm, and status enabled by state-of-the-art wireless technology. IP67 water and dust resistant case.
Alarms
Five-way local and remote notification of alarm conditions. Short bump test and calibration time. Global approval for worldwide acceptance.
Management
Filtered LEL sensor options to inhibit sensor poisoning. Compatible with Safety Communicator.
Device Management with Honeywell SafetySuite.
MicroRAE Specifications
| Size | 117 mm x 76 mm (66) 74 mm x 24 mm |
| Weight |
206 gram including Lio-ion battery and clip
|
| Battery | Rechargeable Li-ion |
| Running Time |
15 hours continuous non-wireless, 12 hours continuous wireless Note: All battery specifications at 20°C; lower temperatures and alarm conditions will affect runtime
|
| Display Graphic | Monochrome display, 44 mm x 33 mm with 2 color backlight modes |
| Keypad | Two-button operation |
|
Direct Readout
|
|
| Alarms |
|
| Datalogging | Continuous data logging (6 months for 4 sensors at 1-minute intervals) User-configurable data logging intervals (from 1 to 3,600 seconds) |
| Communication & Data Download | Data download and instrument set-up and upgrades on PC via Travel Charger Wireless data and status transmission via built-in RF modem (optional) |
| Wireless Network Options | Bluetooth Low Energy and RAE Systems dedicated wireless mesh network or standard Wi-Fi or NB-IoT4 |
| Wireless Range (Typical) | Up to 650 ft (200 m) for sub1 GHz Mesh Radio3, up to 330 ft (100 m) for WiFi3, up to 15 ft (5 m) for BLE |
| Signal Strenght4 | NB-IoT connectivity is ensured if the signal strength is greater than -85dBm |
| EMC/RFI | EMC directive: 2004/108/EC |
| IP Rating | IP67 |
| Calibration | Two-point calibration (manual or automatic with AutoRAE 2) |
| Safety Certifications |
US & Canada: Class I, Division 1, Groups A, B, C, and D
Ex II 2G Ex ia d IIC T4 Gb
Ex I M1 Ex ia I Ma
INMETRO Ex da ia IIc T4 Ga
Korea: Ex ia d IIC T4
|
| Temperature | -20°C to 60°C for T4 temperature code |
| Humidity | 0% to 95% relative humidity (non-condensing) |
| Attachments | Stainless-steel alligator clip: wrist wrap (optional) |
| Warranty | 2-year warranty on device and sensors2 (1 year for HCN sensor) |
| Wireless | ISM license-free band. IEEE 802.15.4 Sub 1 GHz, IEEE 802.11 bands b/n/g 2.4 GHz, NB-IoT bands 1/3/5/8/20/28 |
| Wireless Approvals | FCC Part 15, CE R&TTE, Bluetooth 4.0, GPS, Others4 |
| Oxygen (O2) |
Range: 0 to 30% 0.1%
Resolution: 0.1%
|
| Combustible Gases (LEL) |
Range: 0 to 100% LEL
Resolution: 1% LEL
|
| Carbon Monoxide (CO) |
Range: 0 to 1,000 ppm
Resolution: 0.1%
|
| Hydrogen Sulfide (H2S) |
Range: 0 to 30% 0.1%
Resolution: 0.1%
|
1 Additional equipment and/or software licenses may be required to enable remote wireless monitoring and alarm transmission.
2 Against factory defects.
3 Receiving > 80%.
4 Contact the Gas Detector Shop for country-specific wireless approvals and certificates. Specifications are subject to change.
The MicroRAE is suited to the following applications:
